GSC Power-Division Beehive Spring set with Titanium Retainer for the 4B11T
GSC Power-Division Beehive Spring with Titanium Retainer kit for the Mitsubishi 4B11T
- IN: 75 lbs @ 1.350" / EX: 72 lbs @ 1.361" install height
- IN: 217 lbs @ 0.917" / EX: 214 lbs @ 0.928"
Check your valve spring install heights here
Warning:
This product can expose you to chemicals including Nickel (Metallic), which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm.
More information on California Proposion 65 can be found on Proposion 65 Warnings and OEHHA websites.
*Flip phone to landscape to see full table!*
| GSC5042 Beehive Valve Spring Kit with Ti Retainer for 4B11T | |||||
| Setup | Coil Bind (in) | Install Height (in) | Seat Pressure (lbs) | Open Pressure, 11.0mm Lift | Maximum Valve Lift (in) |
| Beehive | 0.800 | 1.350 / 1.361 | 75 / 72 | 217lbs @ 0.917" 214lbs @ 0.928" | 0.480 |
- Max RPM: 9,500
- Max boost: 40 psi
- Up to 12.2mm lift cams

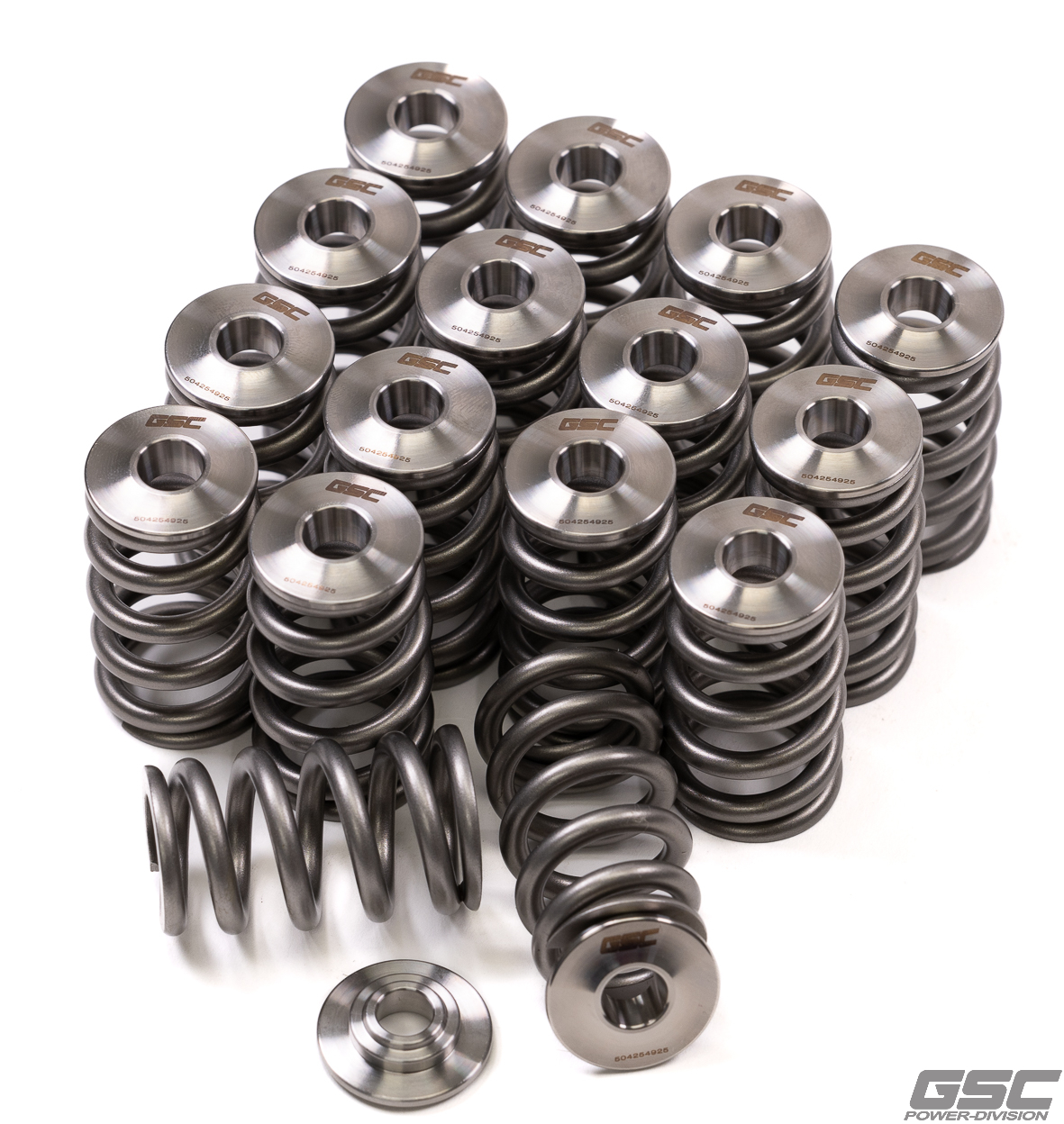

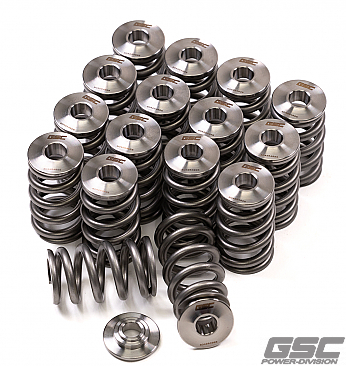

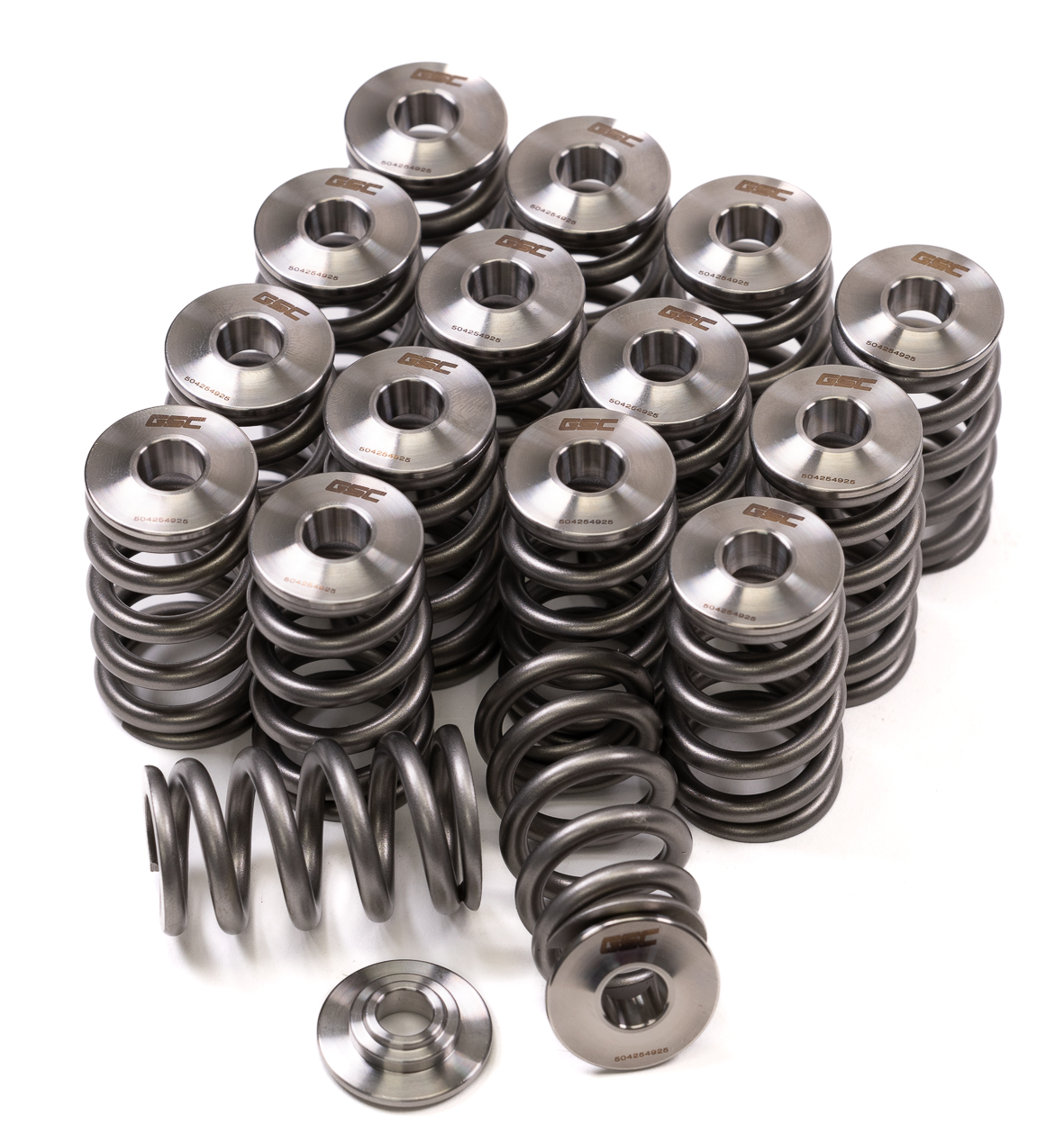

The GSC Power-Division Beehive Spring Kit with Titanium Retainers for the Mitsubishi 4B11T includes 16 titanium retainers and 16 beehive valve springs. Our beehive spring utilizes advanced material heat treatment methods for superior load loss capabilities. These springs have the highest level of spring load retention while still maintaining good fatigue throughout the life of the spring. Beehive springs allow for the use of a smaller, lighter retainer allowing for higher RPM and more valve control.
