GSC Power-Division Dual Spring Set with Ti Retainer for Honda B-Series VTEC Platform
GSC Power-Division Dual Spring Set with Ti Retainer for Honda B-Series VTEC Platform
- 97 lbs @ 1.342" install height
- 259 lbs @ 0.870"
Check your valve spring install heights here
Warning:
This product can expose you to chemicals including Nickel (Metallic), which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm.
More information on California Proposion 65 can be found on Proposion 65 Warnings and OEHHA websites.
*Flip phone to landscape to see full table!*
| GSC5049 Dual Cylindrical Valve Spring Kit with Ti Retainer Honda B-Series VTEC | |||||
| Setup | Coil Bind (in) | Install Height (in) | Seat Pressure (lbs) | Open Pressure, 12.0mm Lift | Maximum Valve Lift (in) |
| Dual Cylindrical | 0.782 | 1.342 / 1.186 | 97 | 259lbs @ 0.870" / 0.714" | 0.501 |
- Max RPM: 8,500 RPM
- Max boost: 50 psi

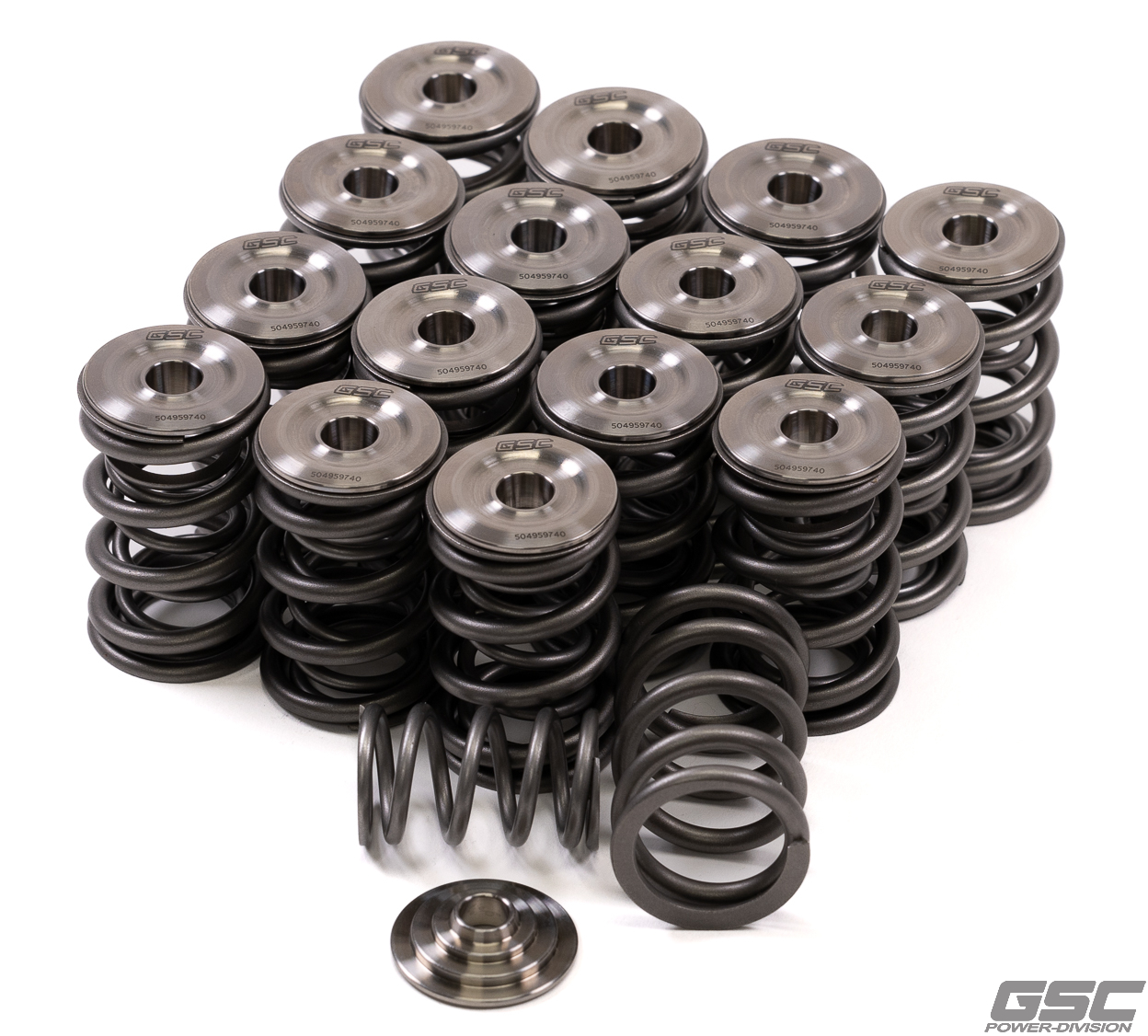

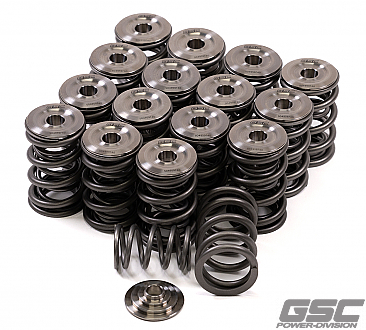

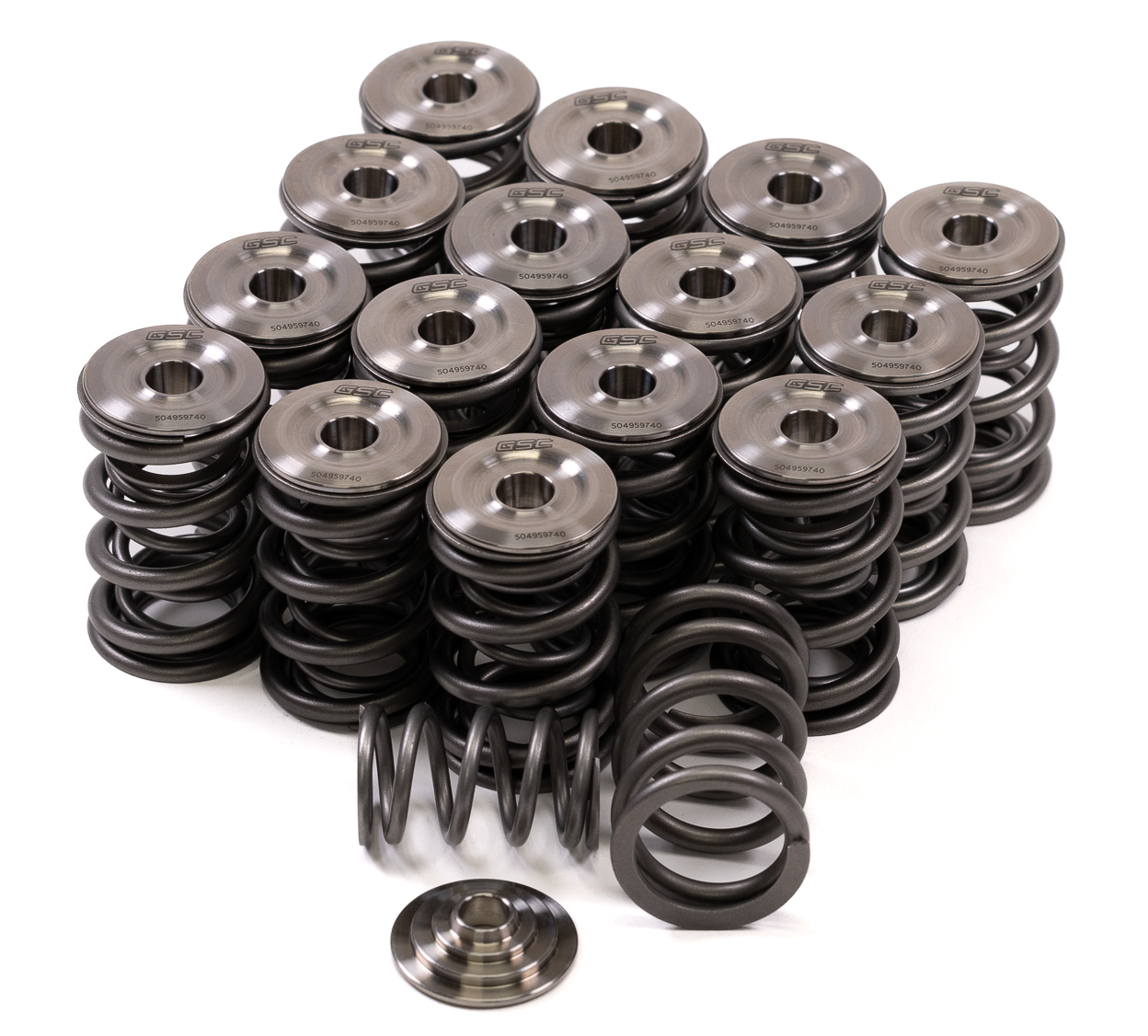

GSC Power-Division Dual Spring Set with Ti Retainer for Honda B-Series Vtec Platform includes 16 titanium retainers and 16 dual spring sets. This dual cylindrical set is made from the same high quality wire as our Beehive Kits and utilizes a nano-peened finishing process to allow for the lowest possible fatigue loss rate of any other dual spring set available for the B-series. Our springs will work with the factory seat so no need to remove the seal and replace the seat when upgrading your valvetrain. The retainer can be used with OEM valve keepers/lock or any of the aftermarket OEM replacement keepers/locks available.
