GSC Power-Division Beehive Spring set with Titanium Retainer for the Hyundai G4KF Theta > 2.0T G4KF Theta Valve Spring Kits > GSC Power Division: Performance Camshafts and Valvetrain

GSC Power-Division Beehive Spring set with Titanium Retainer for the Hyundai G4KF Theta

The GSC Power-Division Beehive Spring Kit with Titanium Retainers for the Hyundai G4KF

71 lbs @ 1.363" install height
213 lbs @ 0.930"

Check your valve spring install heights here

Warning: This product can expose you to chemicals including Nickel (Metallic), which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm. More information on California Proposion 65 can be found on Proposion 65 Warnings and OEHHA websites.

*Flip phone to landscape to see full table!*

GSC5046 Beehive Valve Spring Kit with Ti Retainer for Hyundai G4KF
Setup	Coil Bind (in)	Install Height (in)	Seat Pressure (lbs)	Open Pressure, 11.0mm Lift	Maximum Valve Lift (in)
Beehive	0.800	1.363	71	213lbs @ 0.930"	0.480

Max RPM: 9,200
Max boost: 40 psi
Up to 12.2mm lift cams

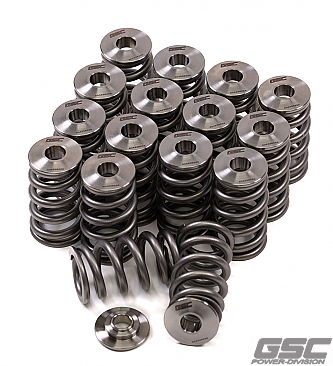

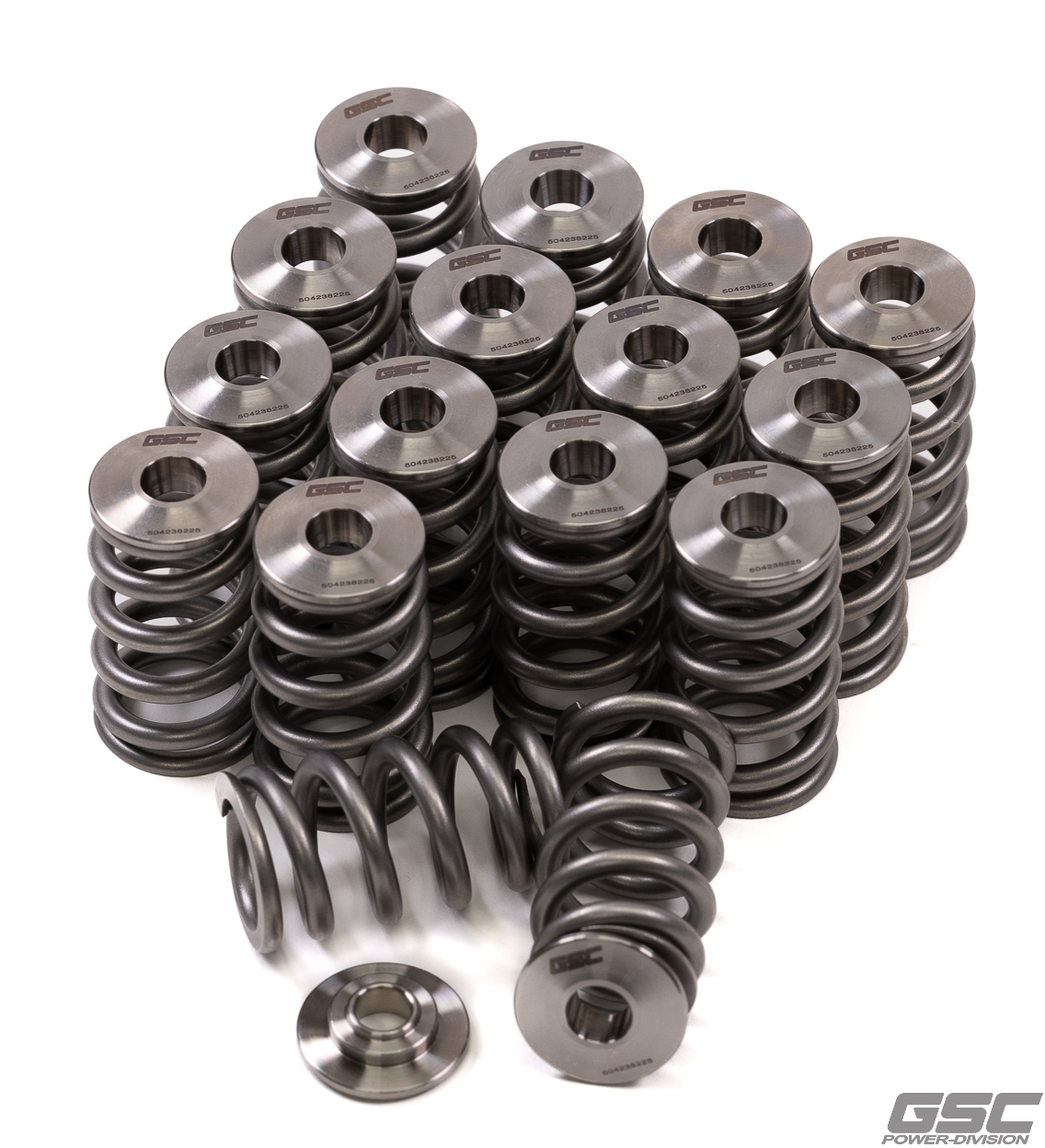

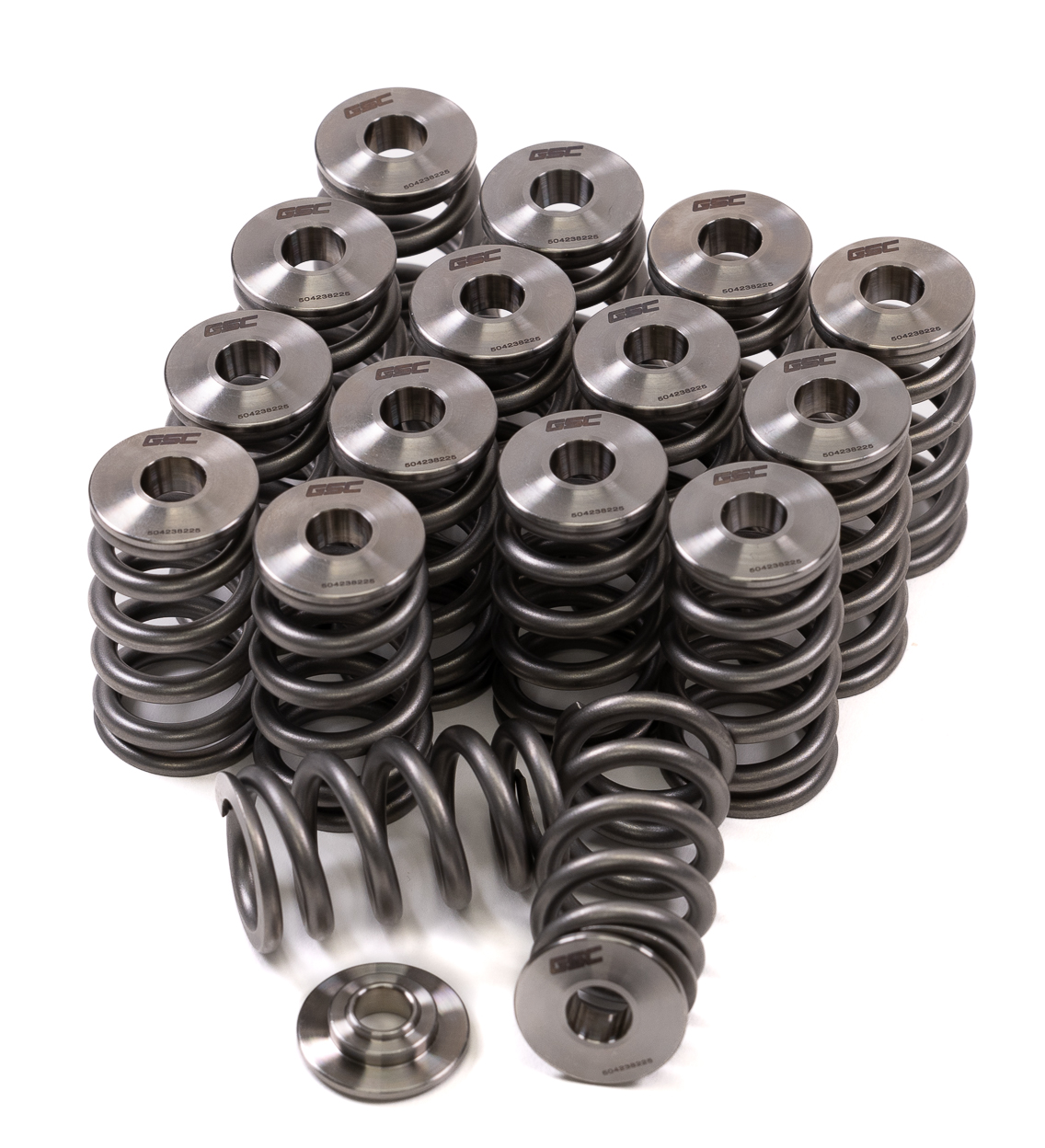

The GSC Power-Division Beehive Spring Kit with Titanium Retainers for the Hyundai G4KF includes 16 titanium retainers and 16 beehive valve springs. Our beehive spring utilizes advanced material heat treatment methods for superior load loss capabilities. These springs have the highest level of spring load retention while still maintaining good fatigue throughout the life of the spring. Beehive springs allow for the use of a smaller, lighter retainer allowing for higher RPM and more valve control. This is a must have for anyone pushing the limits.
