GSC Power-Division Beehive Spring set with Titanium Retainer for the K20 K24 VTEC
GSC Power-Division Beehive Spring Set with Titanium Retainers for K20/K24 VTEC
- 101 lbs @ 1.533" install height
- 267 lbs @ 1.021"
Check your valve spring install heights here
Warning:
This product can expose you to chemicals including Nickel (Metallic), which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm.
More information on California Proposion 65 can be found on Proposion 65 Warnings and OEHHA websites.
*Flip phone to landscape to see full table!*
| GSC5047 Beehive Valve Spring Kit with Ti Retainer for K20/K24 VTEC | |||||
| Setup | Coil Bind (in) | Install Height (in) | Seat Pressure (lbs) | Open Pressure, 13.0mm Lift | Maximum Valve Lift (in) |
| Beehive | 0.920 | 1.533 | 101 | 267lbs @ 1.021" | 0.553 |
- Max RPM: 9,000 RPM
- Max boost: 50 psi

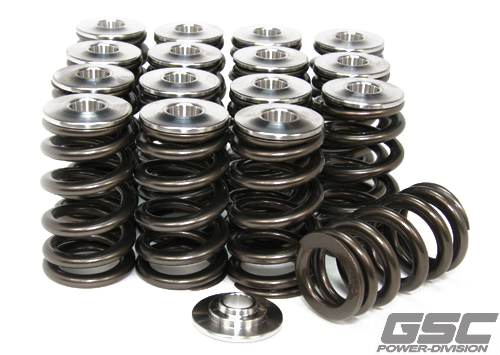

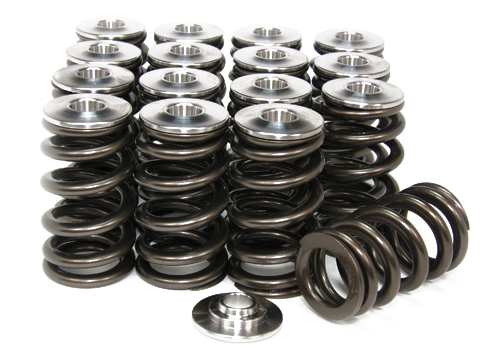

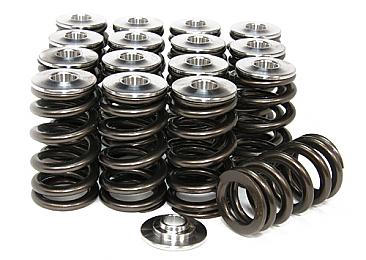

The GSC Power-Division Beehive Spring Kit with Titanium Retainers for K20/K24 VTEC includes 16 titanium retainers and 16 beehive valve springs. Our beehive spring is made with an ovate wire which utilizes advanced material heat treatment methods for superior load loss capabilities. These springs have the highest level of spring load retention while still maintaining good fatigue throughout the life of the spring. Beehive springs allow for the use of a smaller, lighter retainer allowing for higher RPM and more valve control. This is a must have for anyone pushing the limits.
