GSC Power-Division Single Spring set with Titanium Retainer & CroMo Seats for RB26DETT
GSC Power-Division Single Spring set with Titanium Retainer & CroMo Seats for RB26DETT
- 80lbs @ 1.319" install height
- 199lbs @ 0.905"
Check your valve spring install heights here
Warning:
This product can expose you to chemicals including Nickel (Metallic), which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm.
More information on California Proposion 65 can be found on Proposion 65 Warnings and OEHHA websites.
*Flip phone to landscape to see full table!*
| GSC5775 Cylindrical Valve Spring Kit with Ti Retainer for the RB26DETT (shim under) | |||||
| Setup | Coil Bind (in) | Install Height (in) | Seat Pressure (lbs) | Open Pressure, 10.50mm lift | Maximum Valve Lift (in) |
| Cylindrical | 0.845 | 1.319 | 80 | 199lbs @ 0.906" | 0.413 |
- Max RPM: 10,000 RPM
- Max boost: 30 psi

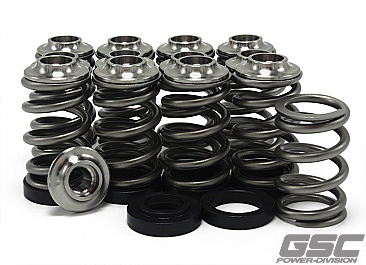

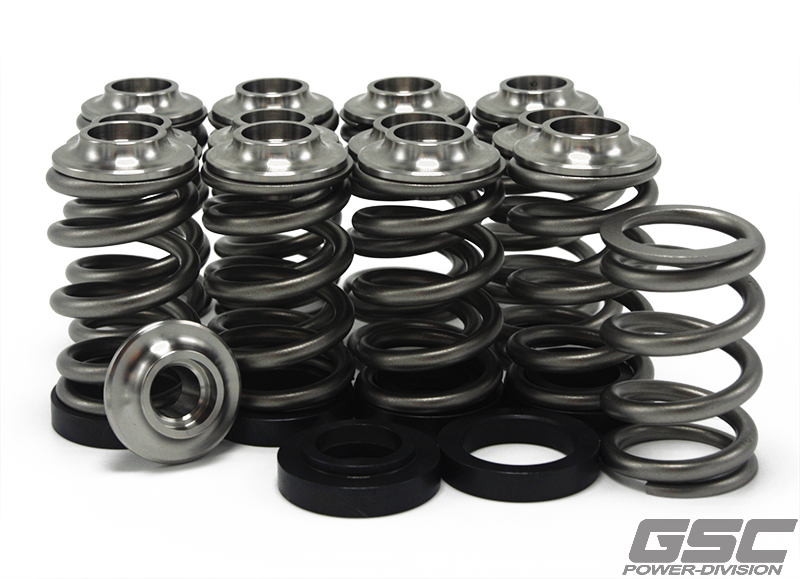

The GSC Power-Division Single Valve Spring with Ti Retainer for RB26DETT includes 24 titanium retainers, 24 cylindrical valve springs, and 24 chromoly valve spring seats. This is a great spring kit for the daily driver with an S1 or S2 cam profile that keeps the boost and revs below 32 psi and 8500 RPM. These round wire springs still have the same high quality attention to detail as our popular beehive kits. The GSC5775 is Nano-peened and batched according to seat pressure within our specs. The lightweight titanium retainers are CNC machined with tolerances and repeatability that are unmatched by other brands. This keeps a consistent seat pressure across the head for ultimate reliability and performance.
