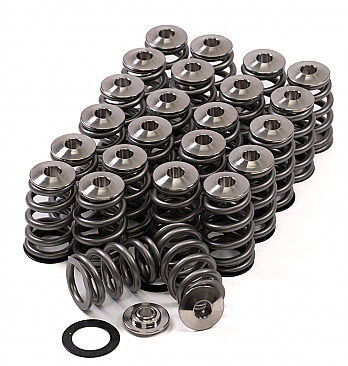

GSC Power-Division VQ35DE NA set of Beehive spring with Ti Retainers
GSC Power-Division VQ35DE NA Beehive spring kit with Ti Retainers
- IN: 70 lbs @ 1.395" / EX: 72 lbs @ 1.390" install height
- IN: 206lbs @ 0.982" / EX: 208lbs @ 0.977"
Check your valve spring install heights here
Warning:
This product can expose you to chemicals including Nickel (Metallic), which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm.
More information on California Proposion 65 can be found on Proposion 65 Warnings and OEHHA websites.
*Flip phone to landscape to see full table!*
| GSC5052 Beehive Valve Spring Kit with Ti Retainer for VQ35DE | |||||
| Setup | Coil Bind (in) | Install Height (in) | Seat Pressure (lbs) | Open Pressure, 10.50mm Lift | Maximum Valve Lift (in) |
| Beehive | 0.825 | 1.395 / 1.390 | 70 / 72 | 206lbs @ 0.982" / 208lbs @ 0.977" | 0.505 |
- Max RPM: 8,500 RPM
- Up to 12.8mm lift cams

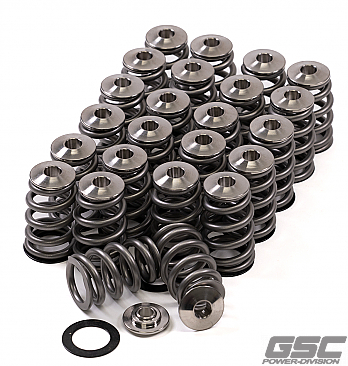

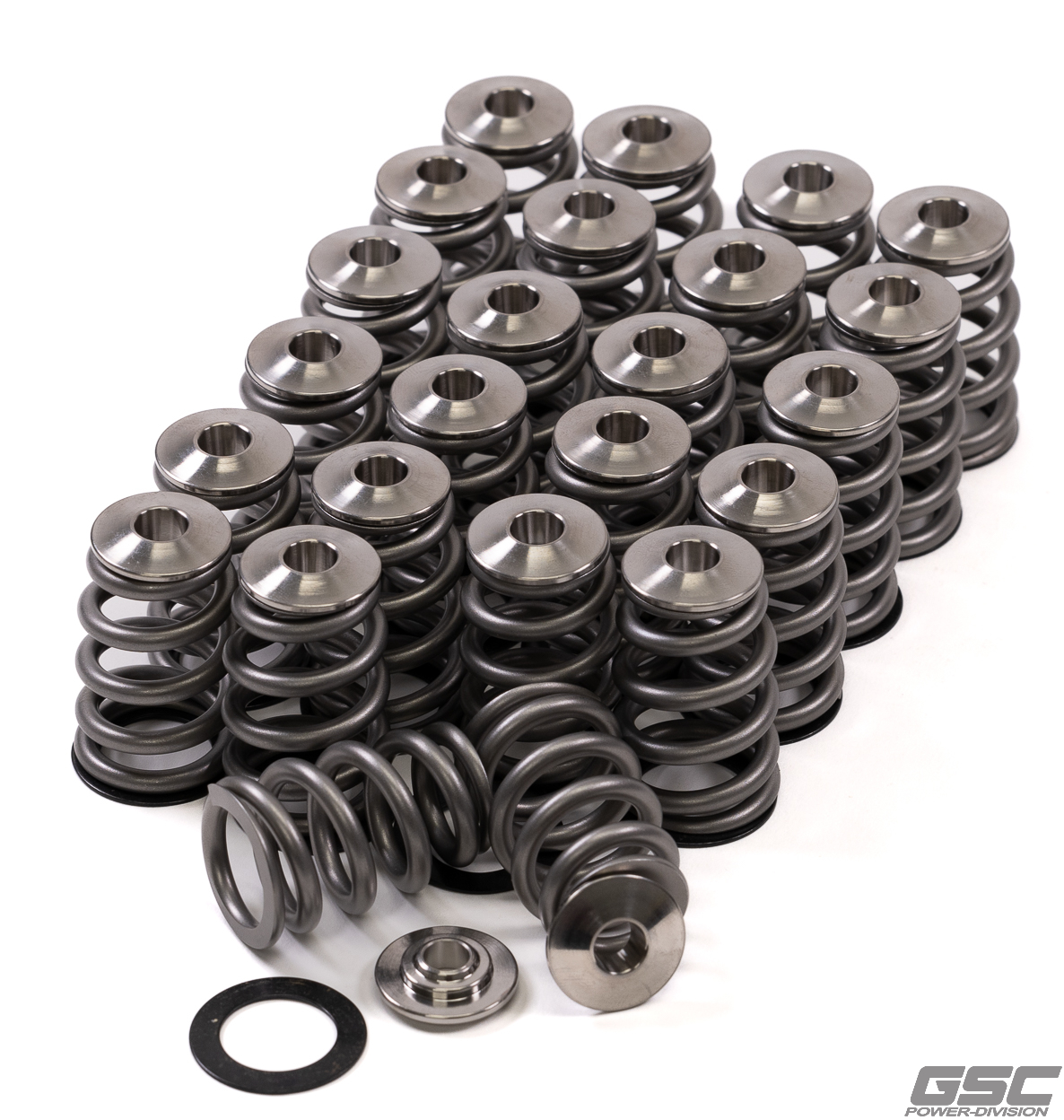

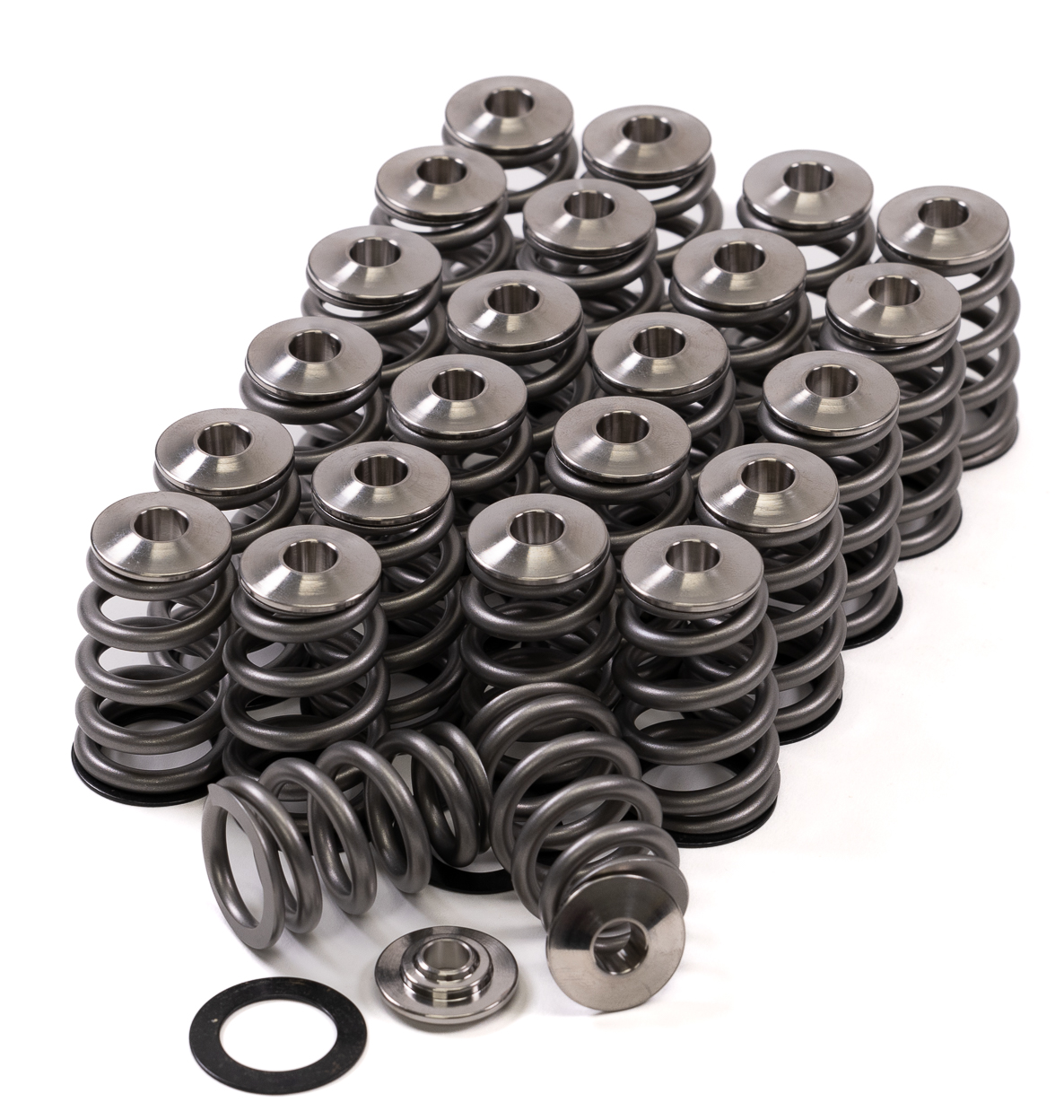

The GSC Power-Division Beehive Valve Spring Kit with Ti Retainers for the Nissan VQ35DE includes 24 titanium retainers, 24 beehive valve springs, and 24 valve spring shims. Our beehive spring is made with an ovate wire which utilizes advanced material heat treatment methods for superior load loss capabilities. These springs have the highest level of spring load retention while still maintaining good fatigue throughout the life of the spring. Beehive springs allow for the use of a smaller, lighter retainer allowing for higher RPM and more valve control.
