GSC Power-Division Billet 2JZ-GTE R2M Camshafts

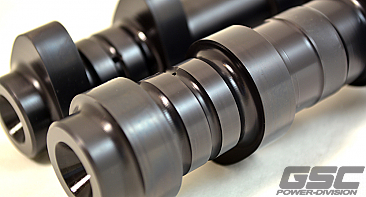

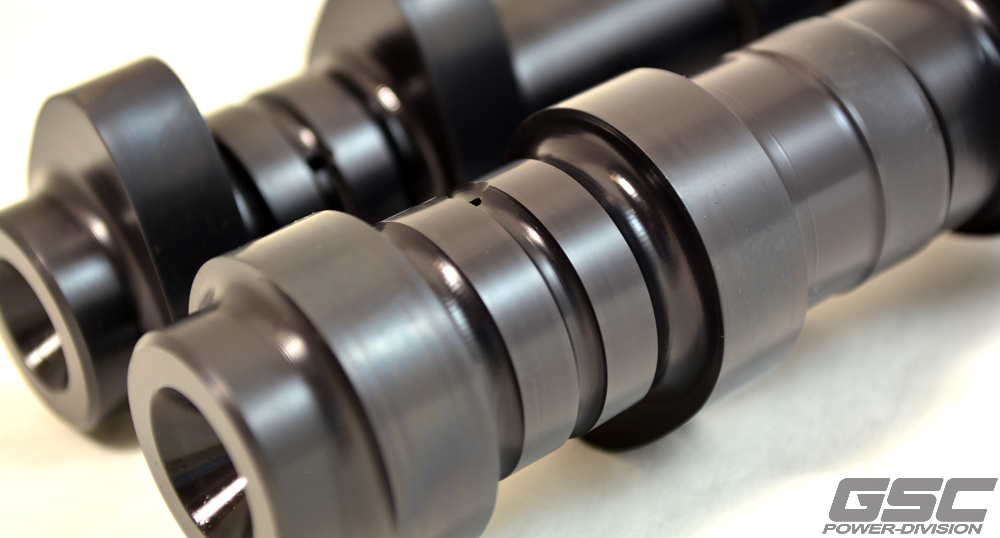

GSC Power-Division Billet R2M Camshafts for the Toyota Supra 2JZ-GTE. The R2M cams are designed for those running methanol and single turbos larger than 80mm. These camshafts are not for daily drivers, they are engineered for race only setups in the 2,000 to 3,000hp range who are capable of running 6 second passes. They are designed for a power-band range of 6,000-10,000 RPM's. These cams require upgraded valve springs set such as our Conical Spring Kit (GSC5066) along with shim-less buckets/tappets. Head clearancing for the high lift of the camshaft's lobes is also required. (Full porting highly recommended).
Warning:
This product can expose you to chemicals including Nickel (Metallic), which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm.
More information on California Proposion 65 can be found on Proposion 65 Warnings and OEHHA websites.
GSC Power-Division Billet R2M Camshafts for the Toyota Supra 2JZ-GTE. The R2M cams are designed for those running methanol and single turbos larger than 80mm. These camshafts are not for daily drivers, they are engineered for race only setups in the 2,000 to 3,000hp range who are capable of running 6 second passes. They are designed for a power-band range of 6,000-10,000 RPM's. These cams require upgraded valve springs set such as our Conical Spring Kit (GSC5066) along with shim-less buckets/tappets. Head clearancing for the high lift of the camshaft's lobes is also required. (Full porting highly recommended).
- It is necessary to clearance the cylinder head casting to allow for the R2M profile to rotate in the 2JZ-GTE cylinder head
- Please maintain 0.02"/ 0.5mm minimum clearance from the cylinder head casting
- 2000+ WHP capable

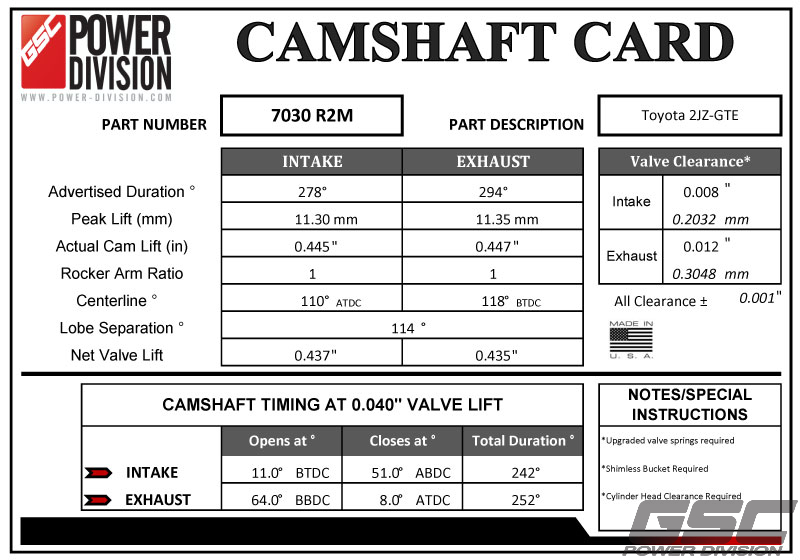

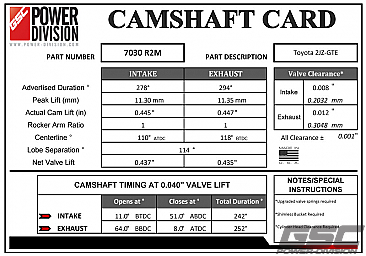

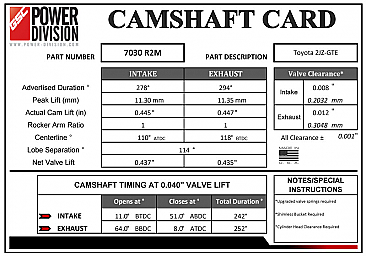

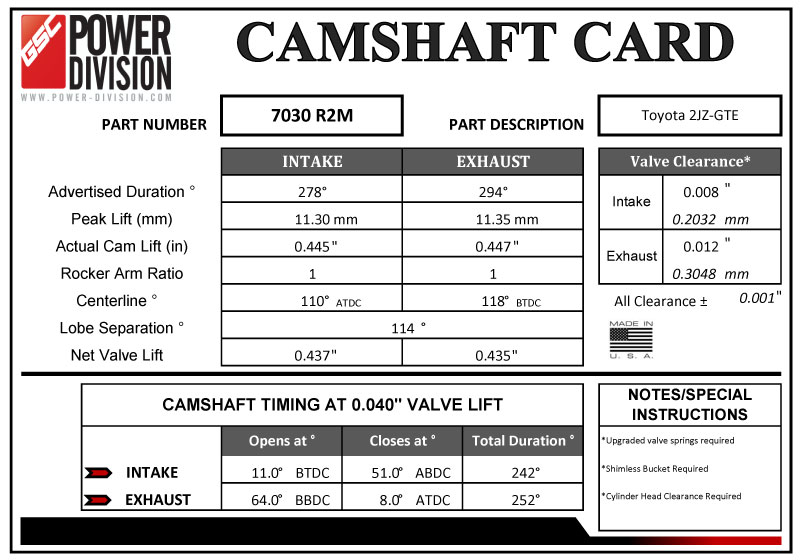

| 7030R2M | ADV Duration | Duration @ 0.040" | Peak Lift | Center Line |
| Intake | 278° | 242° | 11.30mm | 110° |
| Exhaust | 294° | 252° | 11.35mm | 118° |
