GSC Power-Division Dual Valve Spring Kit with Titanium Retainer for Toyota 2JZ Platform
GSC Power-Division Dual Valve Spring Kit with Titanium Retainer for Toyota 2JZ Platform
- 125lbs @ 1.258" install height
- 254lbs @ 0.811"
Check your valve spring install heights here
Warning:
This product can expose you to chemicals including Nickel (Metallic), which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm.
More information on California Proposion 65 can be found on Proposion 65 Warnings and OEHHA websites.
*Flip phone to landscape to see full table!*
| GSC5266 Dual Valve Spring Kit with Ti Retainer for Toyota 2JZ | |||||
| Setup | Coil Bind (in) | Install Height (in) | Seat Pressure (lbs) | Open Pressure, 11.35mm lift | Maximum Valve Lift (in) |
| Dual | 0.766 | 1.258 / 1.013 | 125 | 254lbs @ 0.811" / 0.566" | 0.447 |
- Max RPM: 10,500 RPM
- Max boost: 80 psi

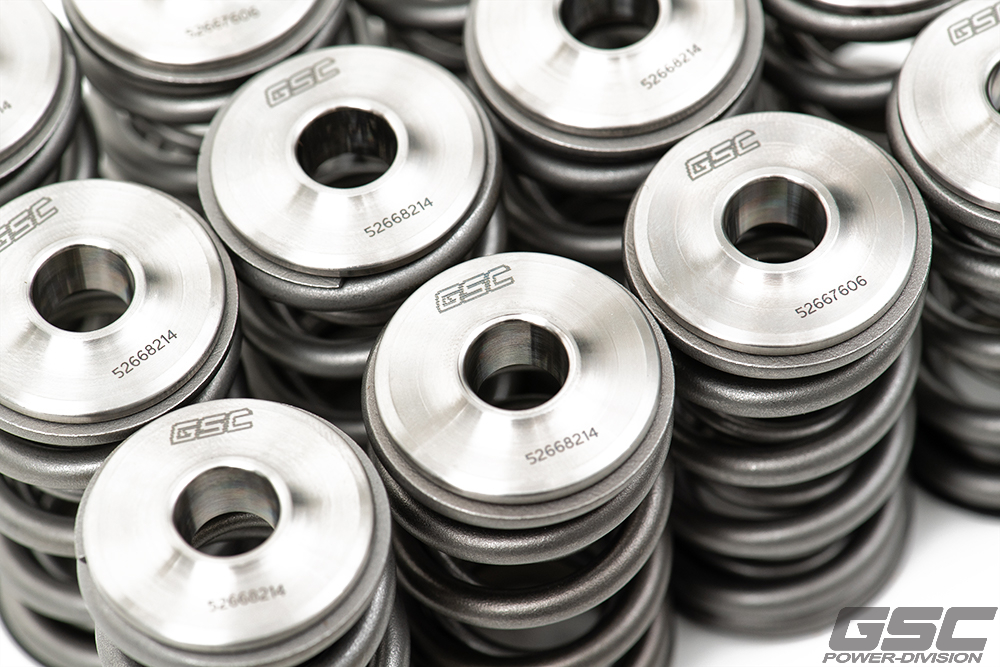

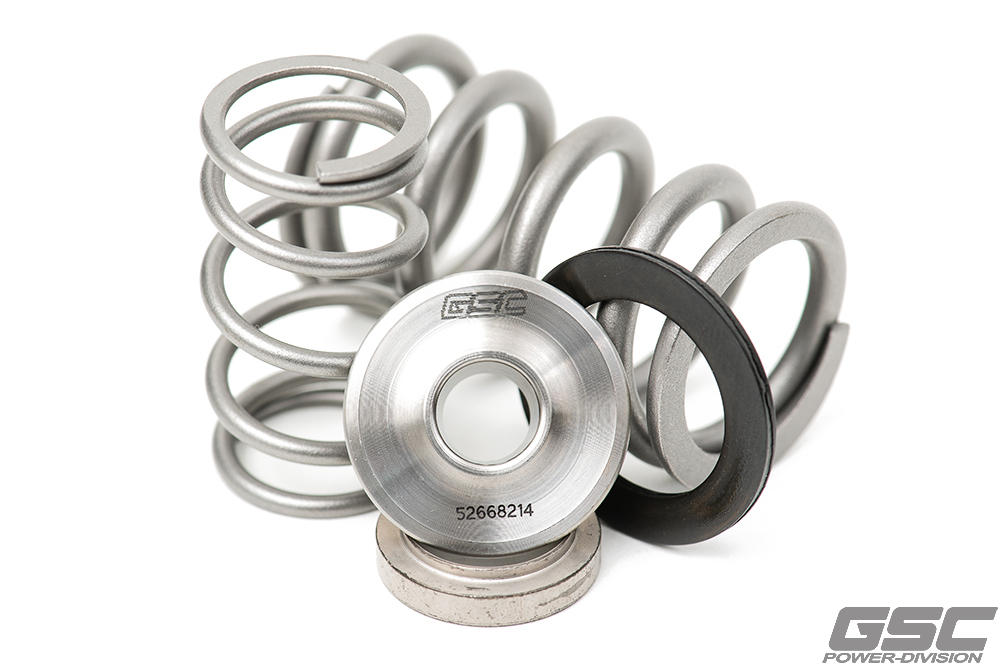

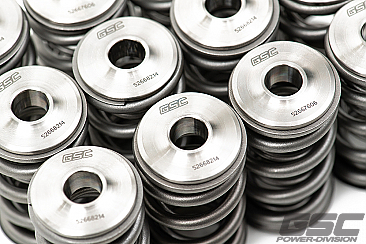

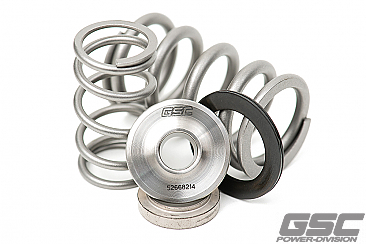

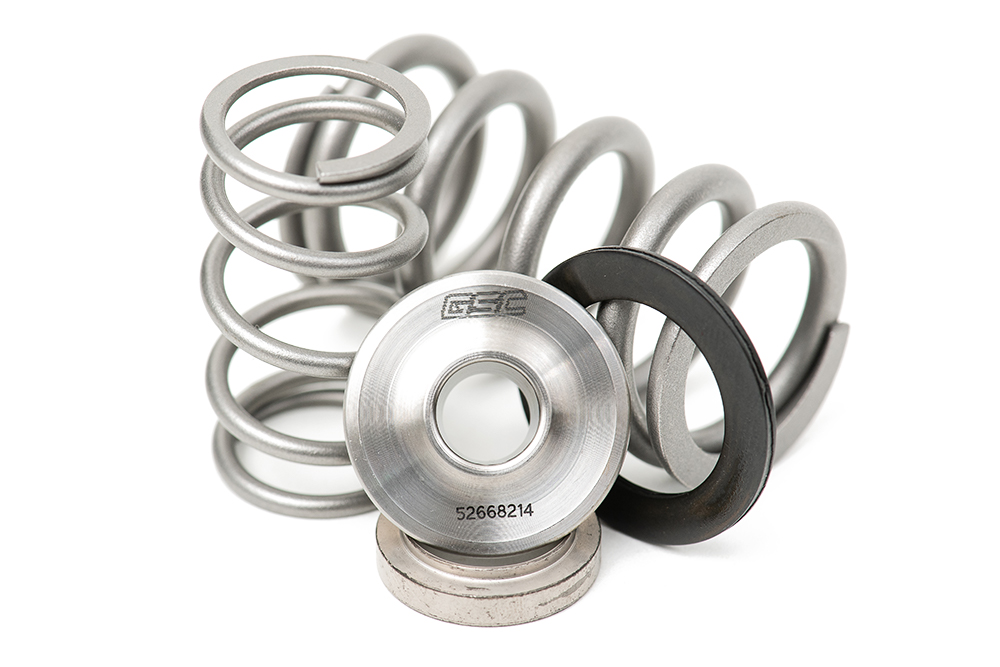

The GSC Power-Division Dual Valve Spring Kit with Ti Retainer for Toyota 2JZ Platforms includes 24 titanium retainers, 24 dual valve spring sets, 24 inner valve spring seats, and 24 outer valve spring seats.
