GSC Power-Division High Lift High Pressure CONICAL Valve Spring with Ti Retainer for TB48 (W/SEATS)
GSC Power-Division High Pressure High Lift CONICAL Valve Spring with Ti Retainer for TB48 (W/SEATS)
- 115lbs @ 1.383" install height
- 290lbs @ .853" Open
Check your valve spring install heights here
Warning:
This product can expose you to chemicals including Nickel (Metallic), which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm.
More information on California Proposion 65 can be found on Proposion 65 Warnings and OEHHA websites.
*Flip phone to landscape to see full table!*
| GSC5082 High pressure High Lift CONICAL Valve Spring with Ti Retainer forTB48 (W/SEATS) | |||||
| Setup | Coil Bind (in) | Install Height (in) | Seat Pressure (lbs) | Open Pressure, 13.46mm lift | Maximum Valve Lift (in) |
| Conical | 0.793" | 1.383 | 115 | 290lbs @ 0.853" | 0.530 |
- Max RPM: 11,000 RPM

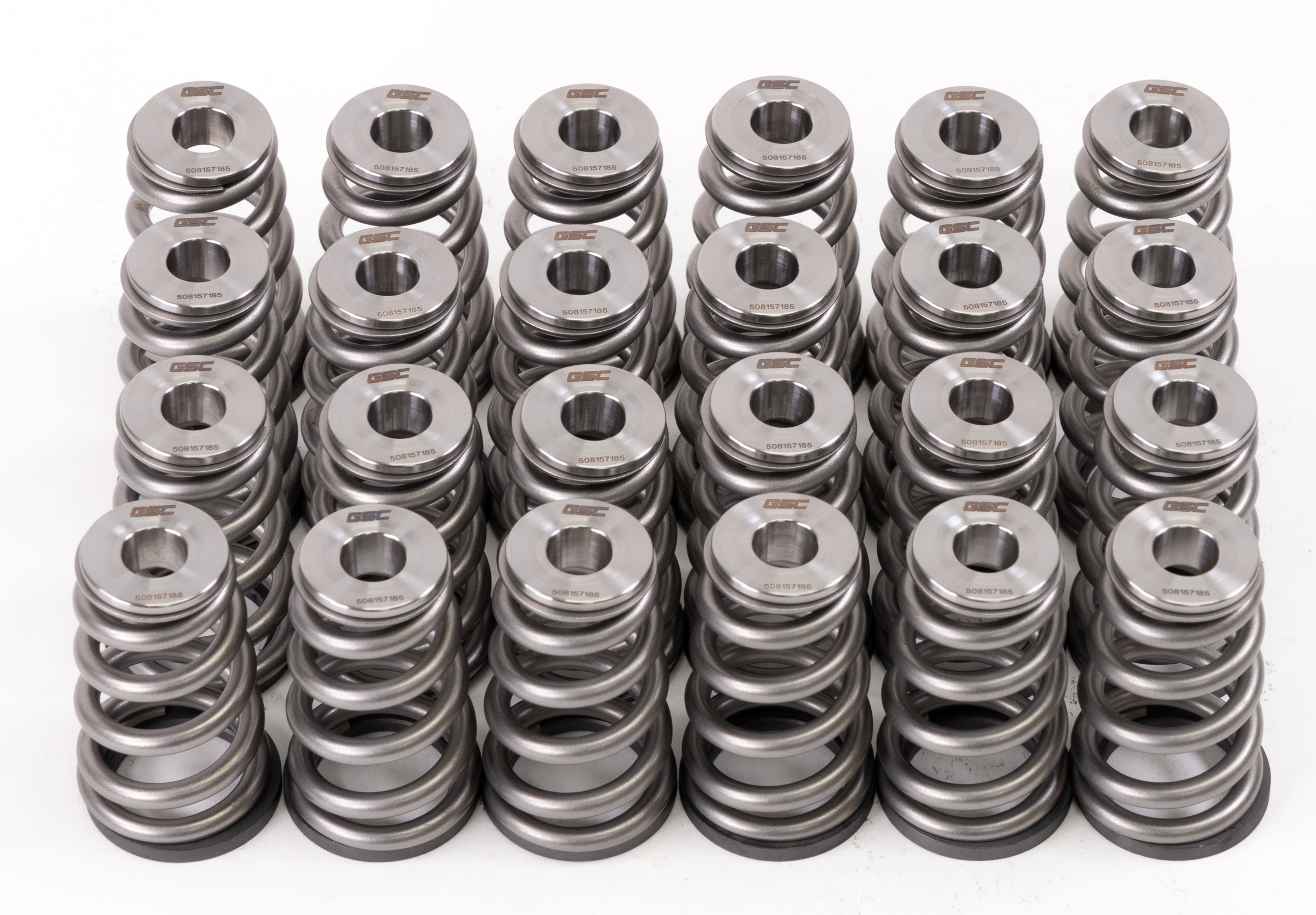

Kit includes 24 Ti retainers, 24 conical valve springs, and 24 chromoly spring seats.
