GSC Power-Division high pressure CONICAL Spring set with Titanium Retainer for the Subaru EJ Engines

GSC Power-Division high pressure CONICAL Spring set with Titanium Retainer for the Subaru EJ Engines

(0 reviews)

Part GSC5073
Quantity in stock 2 item(s) available
Weight 4.00 lbs
Price: $574.75
Quantity (2 available)
GSC5073 High Pressure Conical Valve Spring Kit with Ti Retainer for the Subaru EJ Platforms
Setup Coil Bind (in) Install Height (in) Seat Pressure (lbs) Open Pressure, 11.50mm lift Maximum Valve Lift (in)
HP Conical 0.818 1.303 109 259 lbs @ 0.850" 0.453

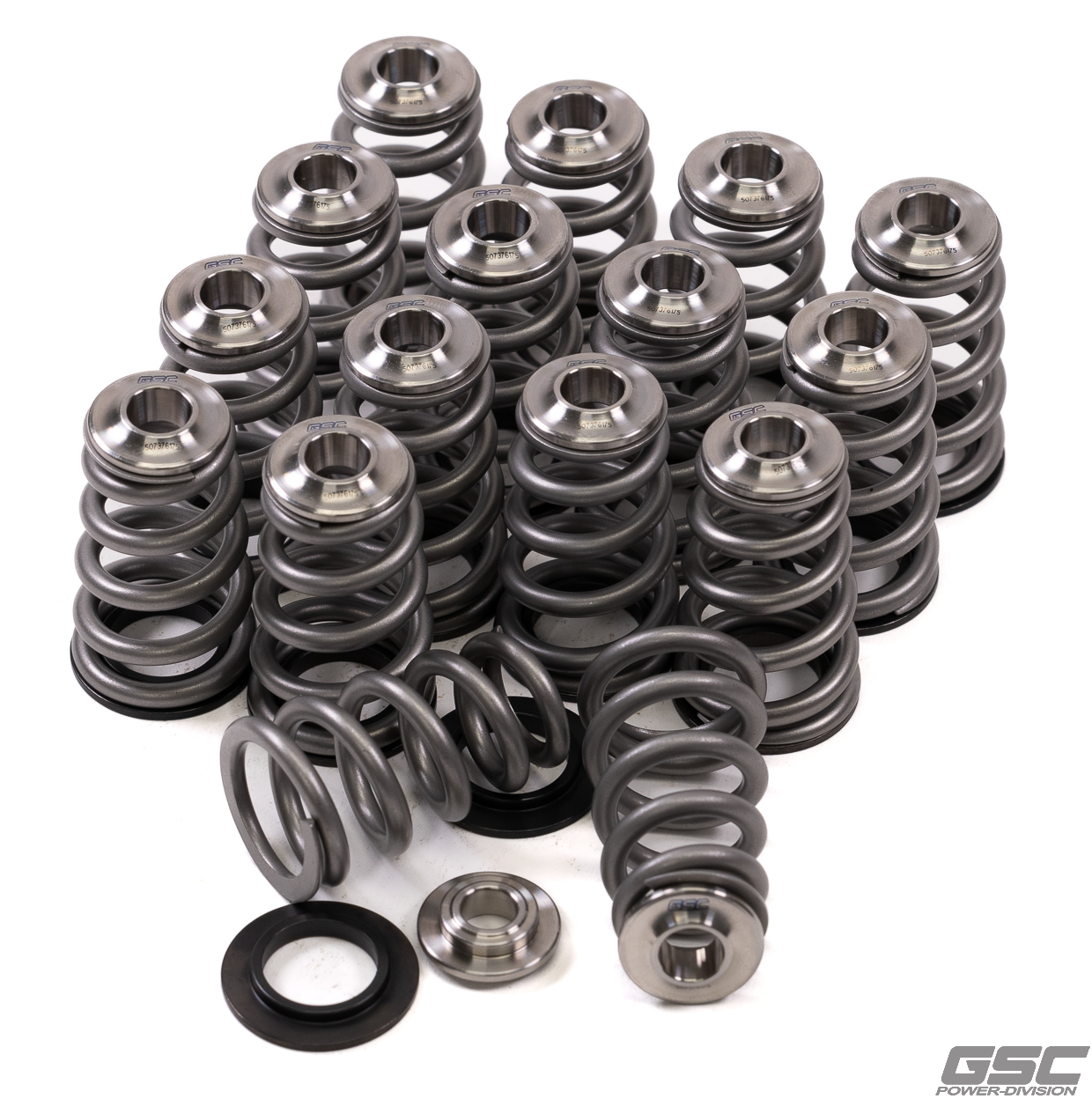

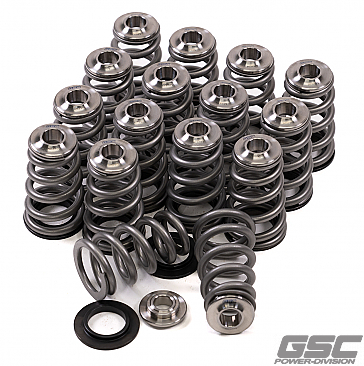

The GSC Power-Division High Pressure Conical Valve Spring with Ti Retainer for Subaru EJ platforms includes 16 titanium retainers, 16 conical valve springs, and 16 chromoly valve spring seats. High RPM and High Boost levels are not a problem on these kits. True conical valve springs are not a new concept and are industry proven to provide several key advantages over traditional spring designs. A major advantage of conical springs vs. traditional cylindrical or beehive springs is the damping and removal of valvetrain harmonics. Of the three designs, conical springs are the front runners in valvetrain harmonic stability. Utilizing a varying coil diameter as well as coil spacing, a conical spring acts as a natural harmonic damper in the transfer of valvetrain shock. This translates to less stress, less wear, and a longer life of the included components. This level of protection is needed in today’s engines being pushed to their physical and mechanical limits by aftermarket modifications. Every GSC conical spring offers a superfinished surface treatment to go along with the patented, multi-step heat treatment process. The finished product is an extremely reliable, high-performance spring allowing the users to push higher RPMs, use more aggressive cam profiles, and turn up higher boost pressures.

Conical Spring Benefits:

  • Vastly improved harmonic stability with inherent self-damping design
  • Smaller design = weight reduction throughout the entire valvetrain system
  • Applications for high RPM and boost pressure with the ability to run more aggressive camshafts
  • State of the art manufacturing and engineering production processes
: *
: *
: *
