GSC Power-Division Single Valve Spring and Ti Retainer Kit Gen3 3SGTE
GSC Power-Division Single Valve Spring and Ti Retainer Kit Gen3 3SGTE
SHIM UNDER VALVE TAPPET ONLY
- 70lbs @ 1.354" install height
- 188lbs @ 0.945"
Check your valve spring install heights here
Warning:
This product can expose you to chemicals including Nickel (Metallic), which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm.
More information on California Proposion 65 can be found on Proposion 65 Warnings and OEHHA websites.
*Flip phone to landscape to see full table!*
| GSC5746 Cylindrical Valve Spring Kit with Ti Retainer for the Toyota 3SGTE (shim under) | |||||
| Setup | Coil Bind (in) | Install Height (in) | Seat Pressure (lbs) | Open Pressure, 10.40mm lift | Maximum Valve Lift (in) |
| Cylindrical | 0.845 | 1.354 | 70 | 188lbs @ 0.945" | 0.452 |
- Max RPM: 8,200 RPM
- Max boost: 32 psi
- Use only Toyota OEM keeper part number: 90913-03021 for the 3SGTE. Do not swap with 2JZ keepers as height will change more than .020"/.5mm causing lower install pressure.

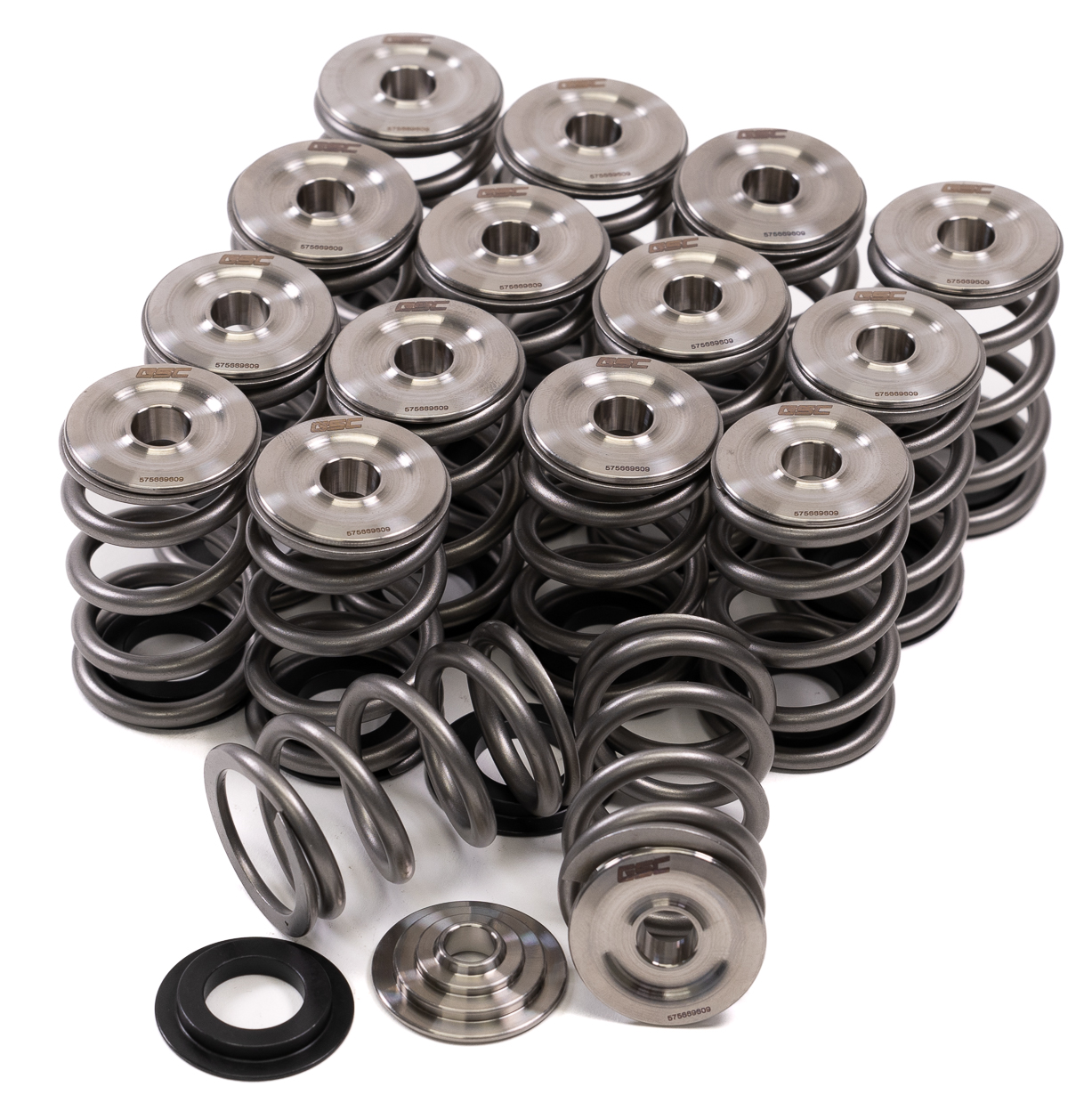

The GSC Power-Division Single Cylindrical Valve Spring with Ti Retainer for Gen3 Toyota 3SGTE for shim under bucket includes 16 titanium retainers and 16 valve springs. This spring kit drops in with the OEM locator. These round wire springs still have the same high quality attention to detail as our popular beehive kits. The GSC5746 is Nano-peened and batched according to seat pressure within our specs. The lightweight titanium retainers are CNC machined with tolerances and repeatability that are unmatched by other brands. This keeps a consistent seat pressure across the head for ultimate reliability and performance.
