GSC Power-Division Stainless Steel STD Size Head Intake Valve for 5.0L Coyote GEN 3

Not rated yet
0

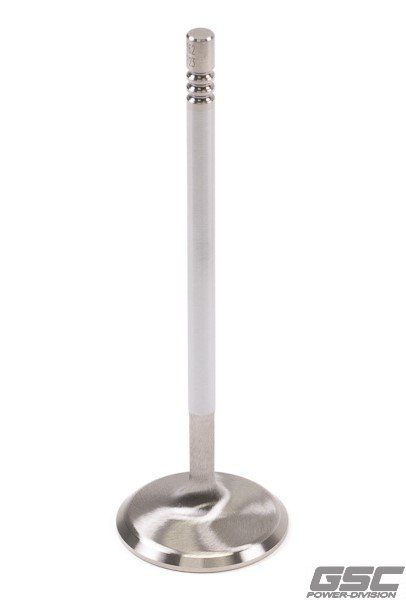

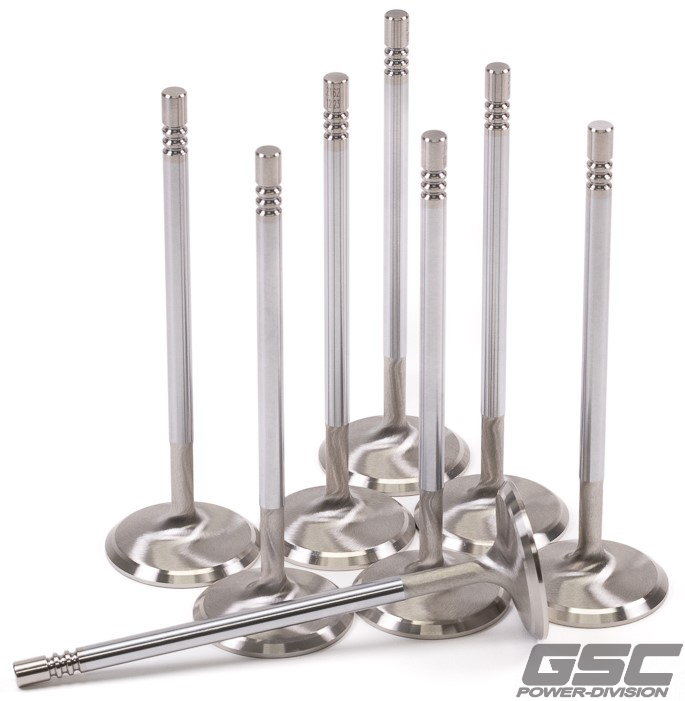

GSC Power-Division Stainless Steel STD Size Head Intake valves for the 5.0L Coyote GEN 3

The GSC offering of intake valves for the Ford Coyote feature a 45° valve seat contact angle which differs from the OEM 40° design. Due to this change in the design it will require a valve job to be performed to install these valves for proper sealing and valvetrain geometry.

Our high-performance valves are meticulously designed using advanced 3D modeling and rigorously tested, are engineered for aftermarket excellence.

.

    • Part Number
      GSC2162-8
    • $233.77
    Qty:
    warning Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) and Nickel (Metallic), which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm. More information on California Proposion 65 can be found on Proposion 65 Warnings and OEHHA websites.

    HEAD DIAMETERTOTAL LENGTHSTEM DIAMETER
    METRIC (MM)37.60
    120.70
    5.9
    IMPERIAL (IN)1.4804.752
    .235

    When creating our valves we set out to create the best performance, longest lasting valves available to the aftermarket. Using advanced 3D design and simulation software, we have created a stronger and higher flowing valve head design. We flow test prototype valve heads in the specific applications to make sure we have the highest flowing valve head available on the market. With the materials used, we have less valve distortion at the face than any of the tested designs. Less distortion allows for better sealing under extreme conditions and more consistent performance throughout the life of the valve.


    Valve Features:

    • Swirl Polished Heads: Engineered for smoother airflow, optimizing the valve's aerodynamics.
    • Back Cut Design: Strategically reduces valve weight, enabling higher RPMs.
    • Micro-Polished Valve Stems: Minimizes oil retention on the stem, reducing drag for a smoother motion within the guide.
    • Premium Material: Intake valves are crafted from modified 21-4n stainless steel for exceptional strength and performance.
    • Advanced Valve Tips: Hardened or fused with a stellite wafer tip, ensuring extended life and minimal wear, maintaining proximity to the rocker or valve tappet..
    • Optimized Valve Tip Lengths: Meticulously adjusted for specific applications to reduce tipping and maintain proper valve train geometry, thereby streamlining valve lash adjustment during installation.
    • Balanced Keeper Groove: Precisely adjusted to balance intake and exhaust spring pressures, minimizing the need for valve spring shims. This optimization maximizes performance from our spring and retainer kits.
    • Compatibility: Our valves seamlessly work with OEM keeper/lock systems. While not mandatory, we advise against reusing any valve lock on performance applications due to potential material grooving.
    • Quality: Backed by GSC Power-Division's commitment to quality and performance.
